Glass cutting systems

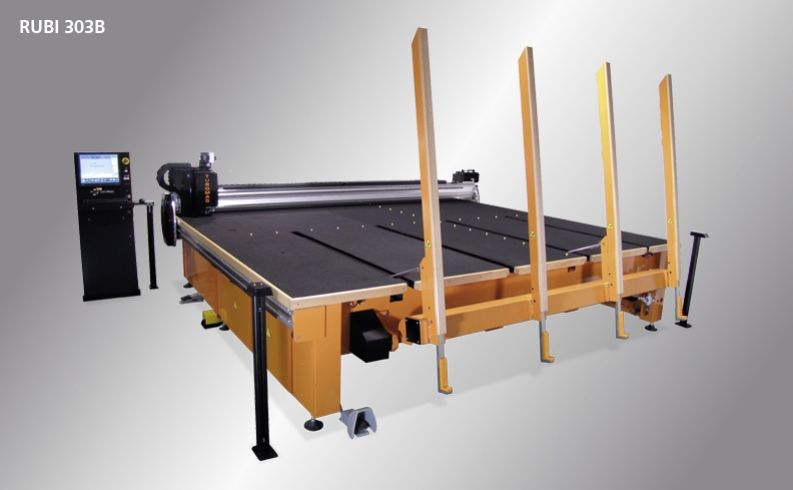

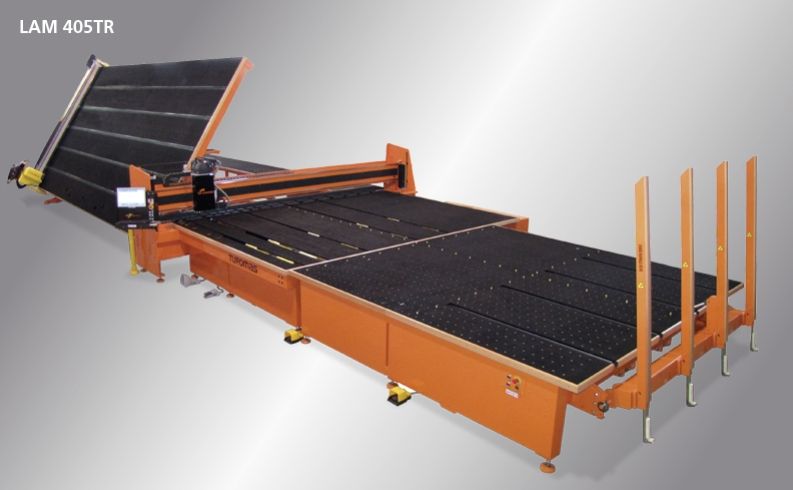

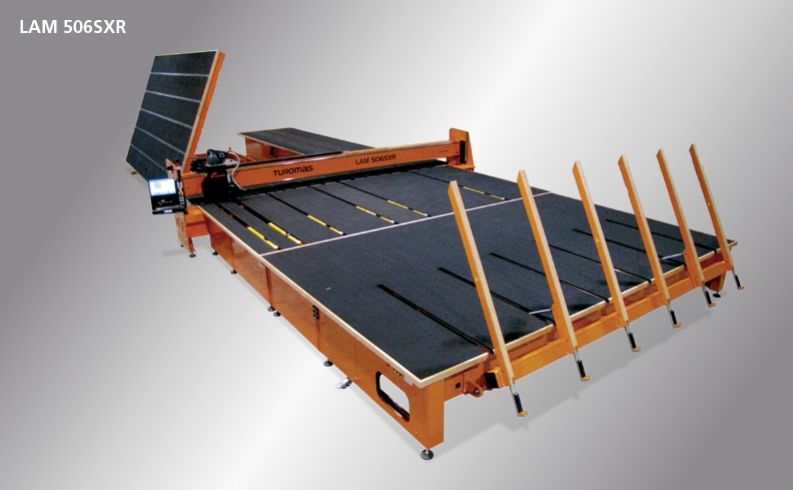

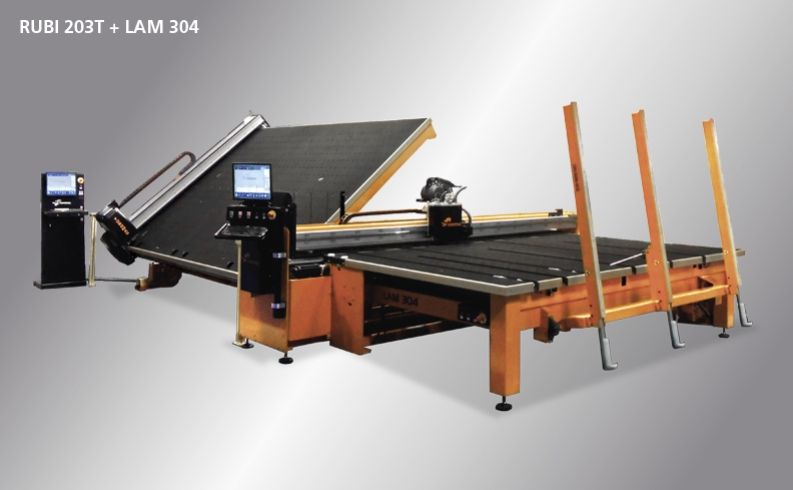

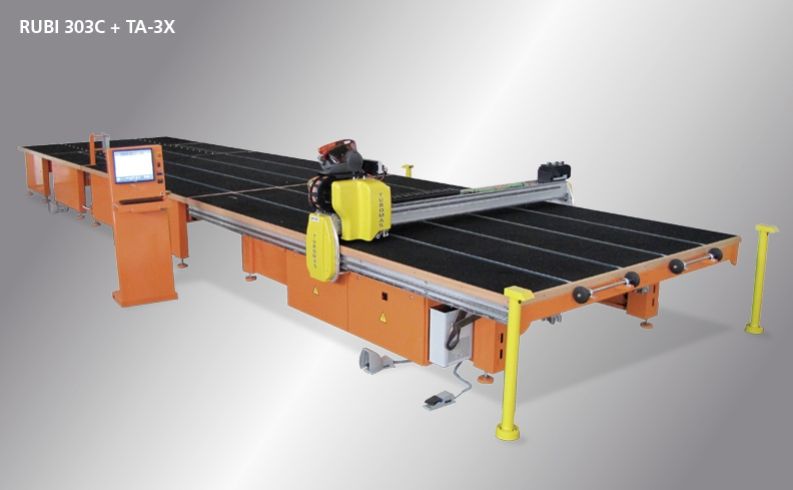

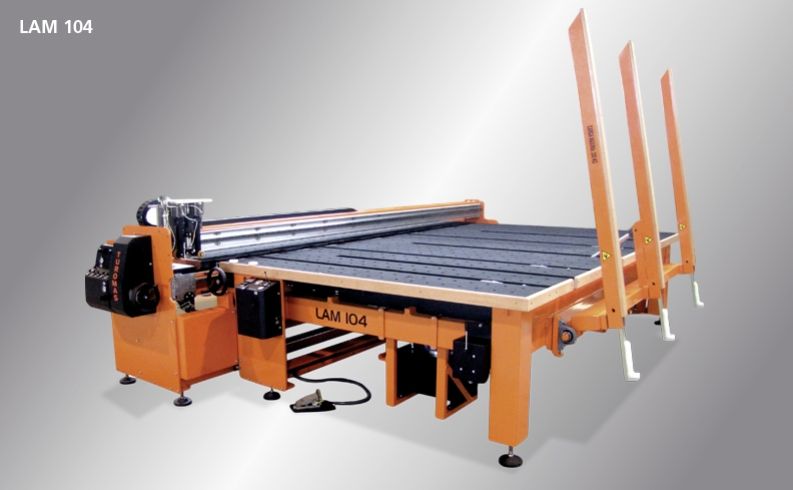

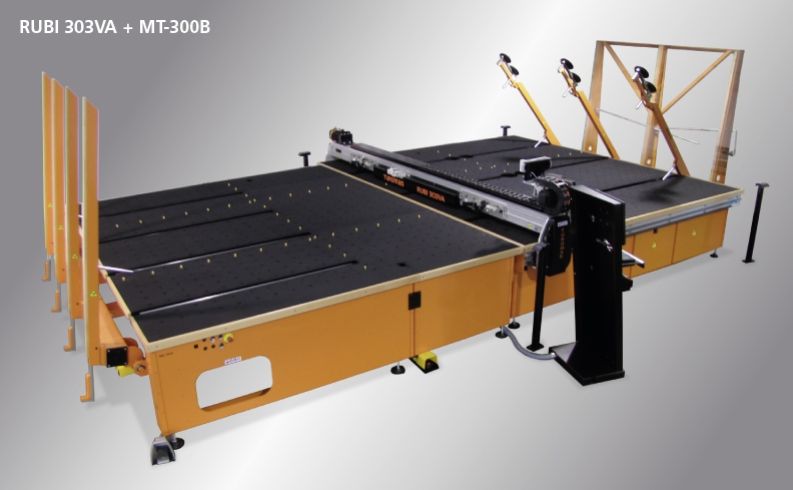

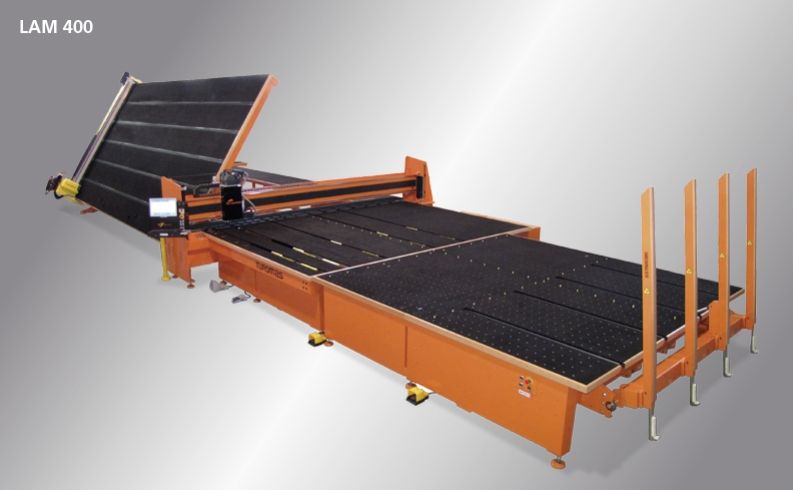

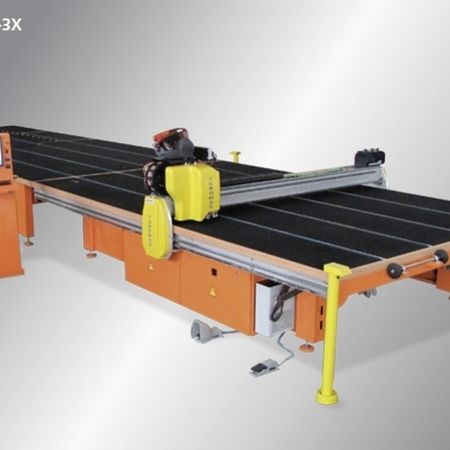

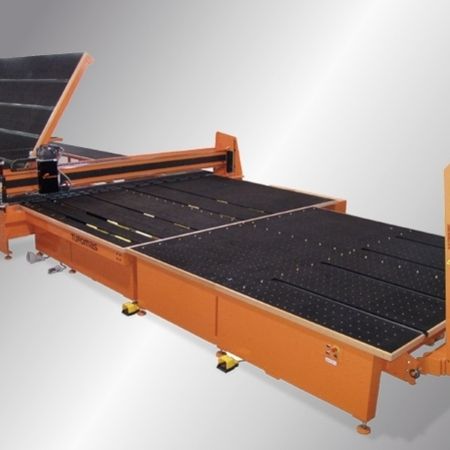

We are pleased to offer a complete range of cutting tables, from stand-alone commercial cutting tables to custom glass cutting and fully automated industrial float glass cutting lines. Each cutting table can also be optionally equipped with low-e edge deletion. In addition, we offer combination cutting lines for float glass and VSG as well as pure VSG lines. In short: We supply cutting tables for every size and every requirement.

Manual tables


The purpose of use

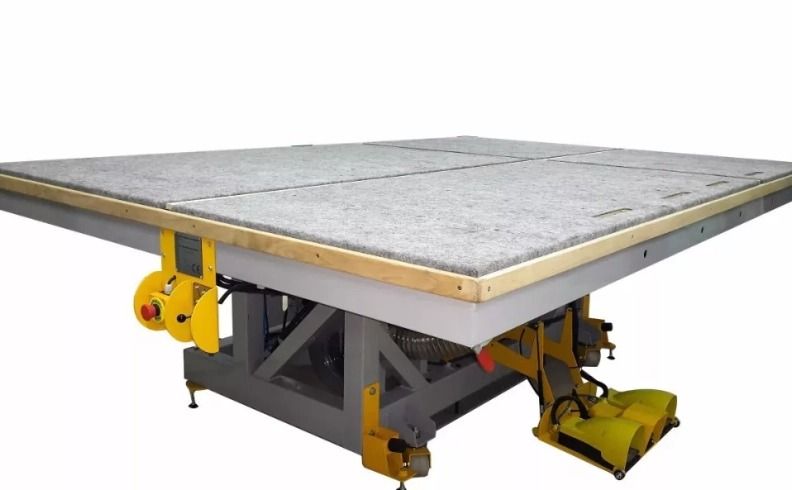

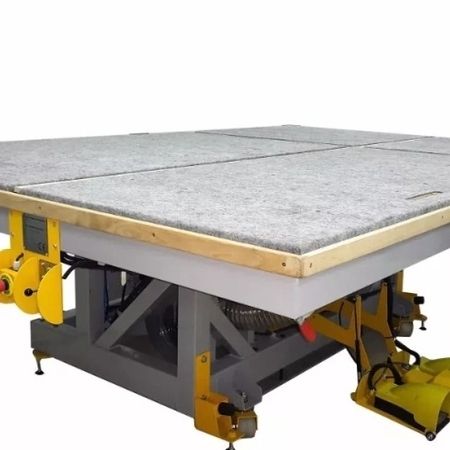

Expoglass glass cutting table is a machine which makes operation of glass cutting: easier, faster and safer. Usually it also reduces the number of necessary operators during the glass cutting process. The main three features which helps in glass cutting are: tilted top, breaking bars and air cushion system.

Loading the glass

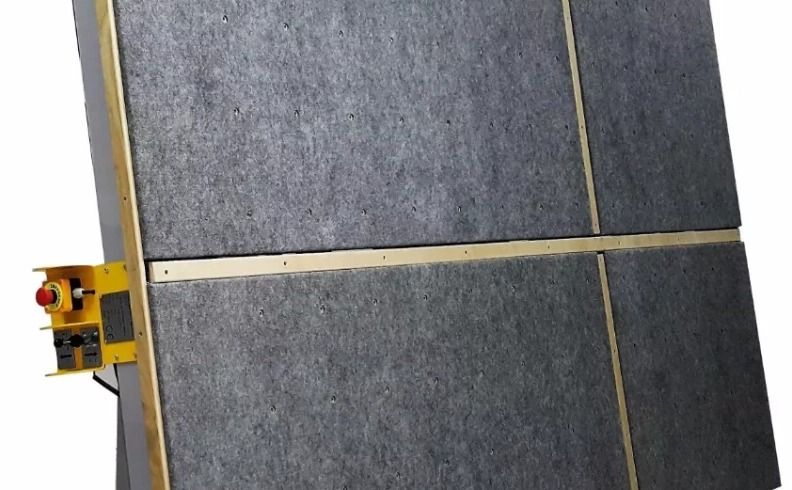

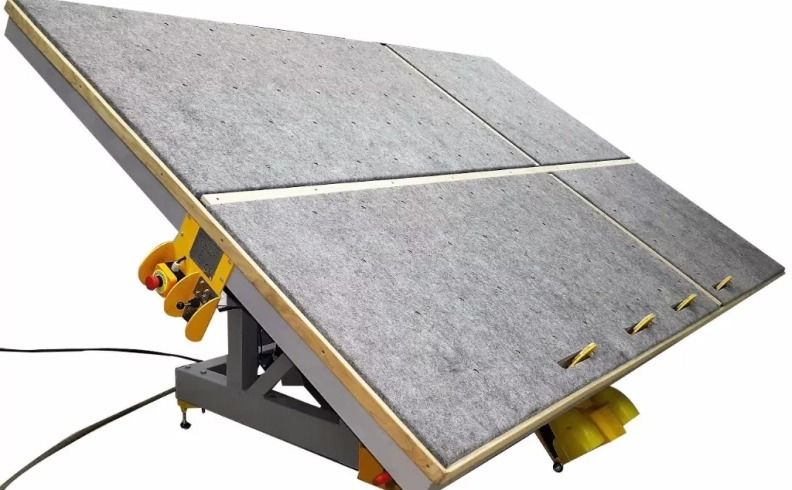

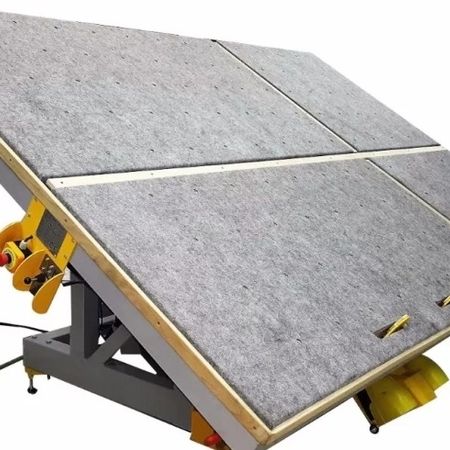

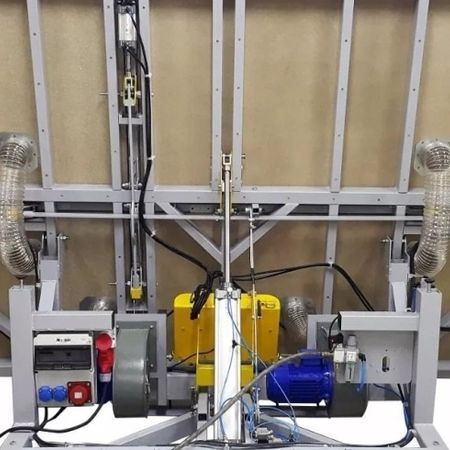

The basic function of all glass cutting tables is to enable safe and convenient glass loading. Glass sheets, should be handled in a vertical orientation, otherwise they could break under their own weight. In our tables, in order to be able to put the sheets on the table safely and comfortably, it is enough to pull out the loading cantilevers from the table top, tilt the table top to an inclined position and place the panes on the brackets.

Breaking the glass

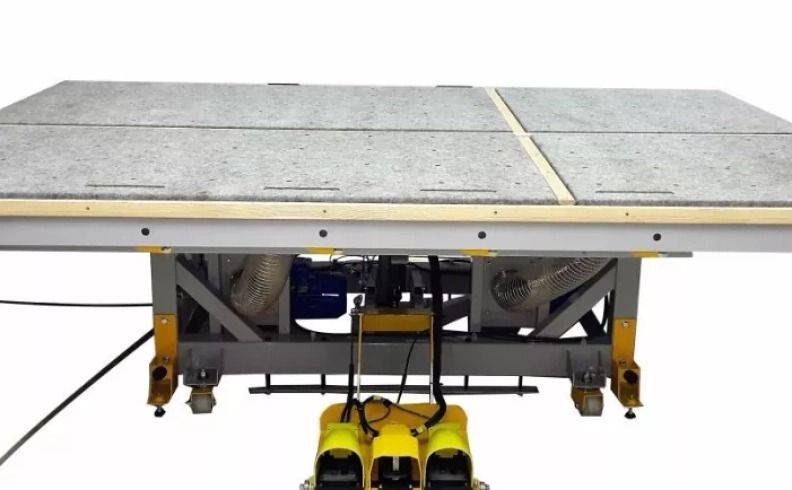

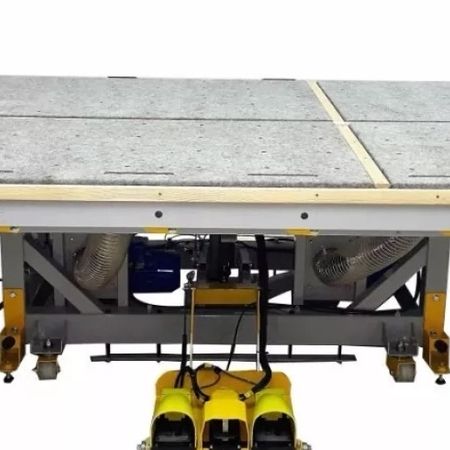

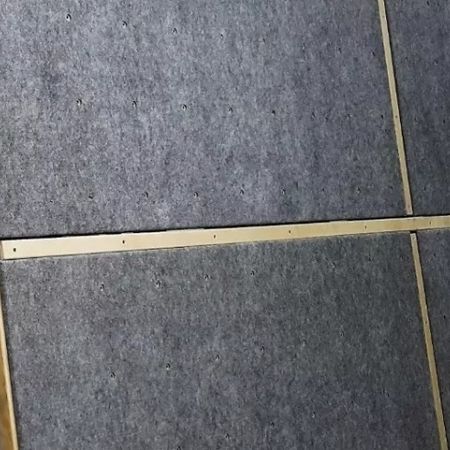

Breaking bars greatly improve the glass breaking process. After scoring the glass, it is enough to set the surface in such a way that the score is located above the bar and press the pedal under the table. Pressing the pedal causes the breaking bar to lift, pushing from the bottom along the score on the glass and the material breaks under its own weight. Depending on the orientation in which we cut the glass, we can use breakers - longitudinal or transversal.

Manipulating large and / or heavy panels

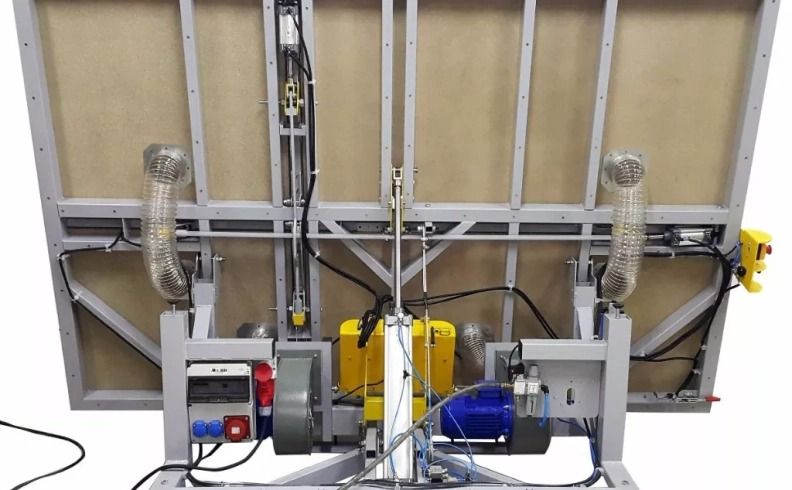

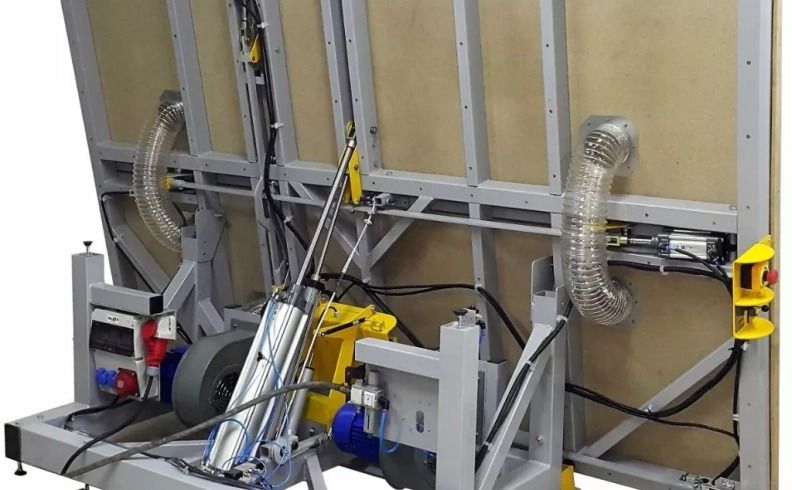

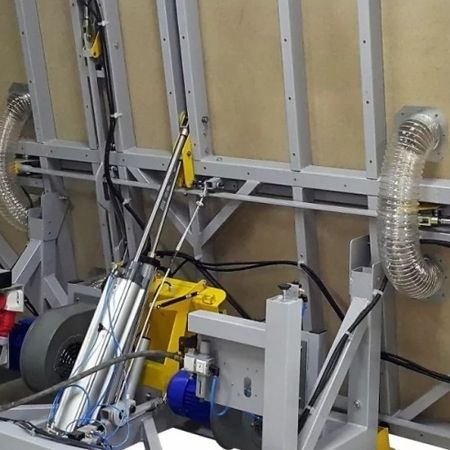

While manipulating large and / or thick glass sheets, large friction is generated on the worktop surface. This phenomenon makes it difficult for the operator to work, and in some cases may unable the operator to operate alone. An additional risk is scratching of the glass at the moment when there are pieces of glass or other dirt on the table. The occurrence of these problems can be minimized by using an aircushion system.
